Chapter3:Subaru Evolutionary lineage The history of masterpiece Subaru “EJ20″engine

©株式会社モータープランニング

In Chapter1,we talked about “The history of the masterpiece Subaru “EJ20” engine”.And Chapter2,”Subaru High Power Engine Pedigrees. The history of the masterpiece Subaru “EJ20” engine”.This time, I would like to introduce how the high-power engine EJ20 was improved and evolved.

Output improvements

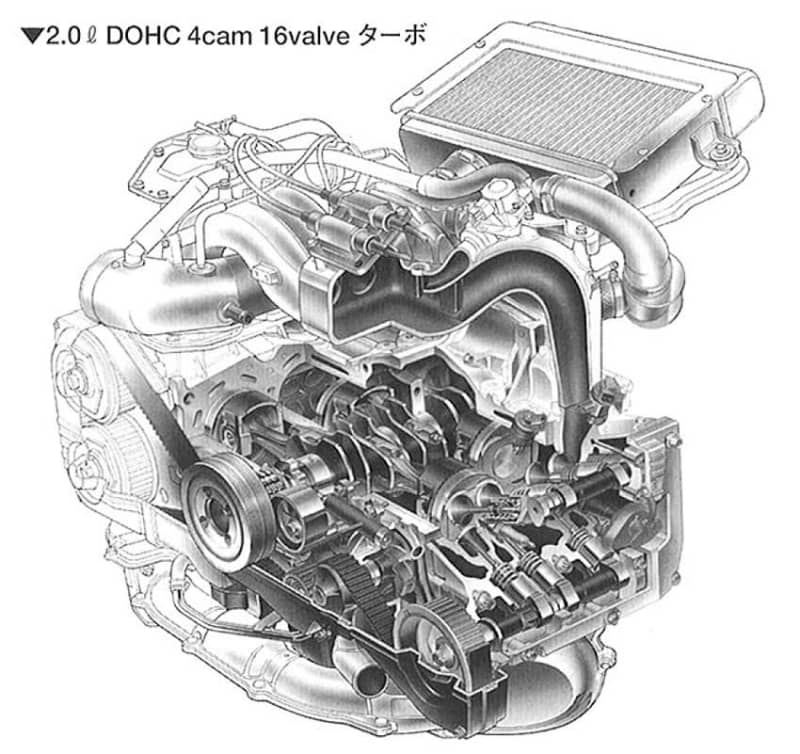

The EJ20 turbo engine installed in the first-generation WRX is a significantly improved version of the EJ20, which was the first model for Legacy, and has a new cylinder head design that has been redesigned for higher output.

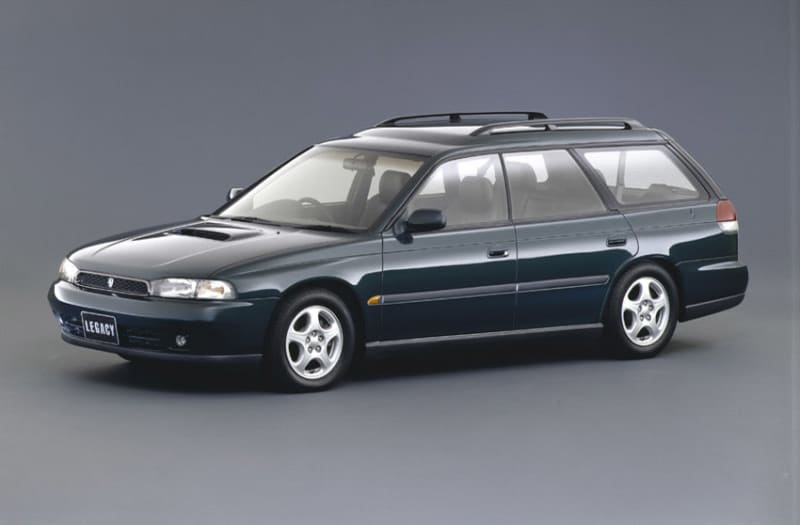

The second generation Legacy designed by Olivier Boulay, the chief designer

However, in the second generation Legacy (BD/BG type) that appeared in 1993,
Further improvements were made when this EJ20 was installed. The second-generation Legacy is a 5 number size 2.0L compact car body, but the development goal was to be suitable as a full-scale grand touring car, and a high-power engine suitable for a grand touring car was required.

From this time on, the base of the EJ20 engine has been improved in efficiency, while achieving high output, while pursuing practical fuel efficiency and quietness of the power train. In particular, it aimed to improve practical fuel efficiency by 10 to 20% compared to the first-generation Legacy, and achieve a cruising range of 500 km with a full tank.

For this reason, the naturally aspirated EJ20 engine has adopted a direct valve drive with a valve angle of 41 degrees, improved torque in the low to medium speed range, and a new equal length double Y-shaped exhaust manifold with higher exhaust efficiency.

This newly adopted isometric double Y-shaped exhaust manifold reduces exhaust resistance, suppresses exhaust interference, and improves output and torque.

Two-stage twin turbo adopted

The newly developed 2-stage twin turbo has been newly adopted for the GT and RS grades that represent Legacy. The purpose was to achieve both high output and running, and to secure a powerful torque from low speed even in daily driving.

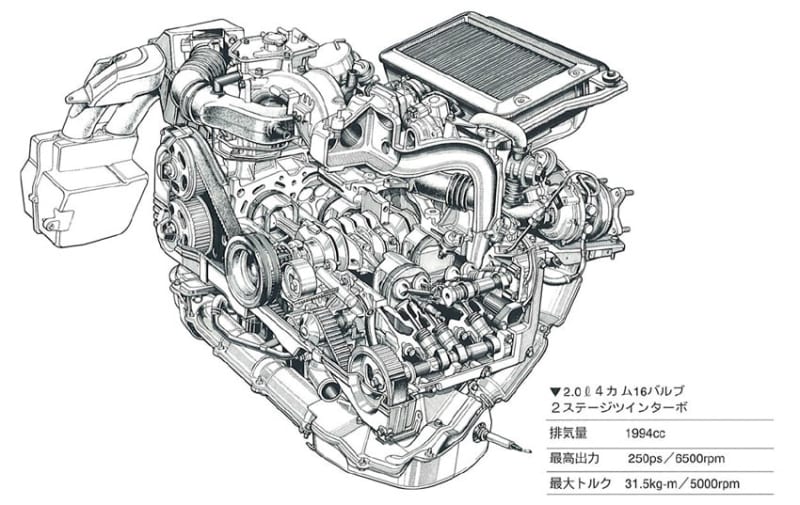

EJ20 type turbo which adopted 2 stage twin turbo

Specifically, it produces a linear response over the entire area and a large torque comparable to that of a 3.0L naturally aspirated engine, resulting in the same engine specifications for 5-speed MT and 4-speed AT.

The mechanism of the two-stage twin turbo is a system also called sequential turbo, and at low speeds, a single (=primary) turbo generates supercharging pressure, and as the load increases, the secondary turbo also generates supercharging pressure. It is a mechanism that becomes a twin turbo state.

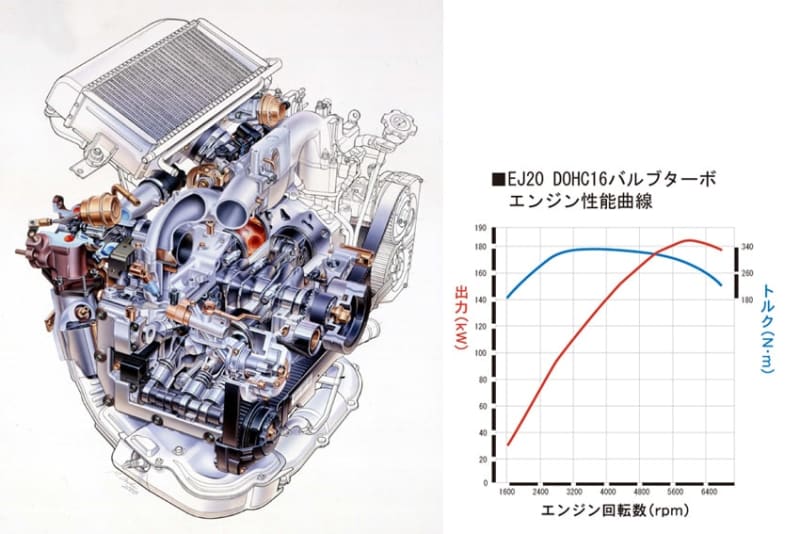

High output, high efficiency twin turbo

As for the A/R ratio, which represents the capacity of the turbocharger, the GT of the first generation Legacy was 15, and the RS model was equipped with a high-speed turbine of 20.However,this two-stage twin turbo EJ20 is equipped with two turbines with an A/R ratio of 12. As a result, a low-speed turbine with an A/R ratio of 12 operates in the low-speed range, resulting in a linear accelerator response with little turbo lag.

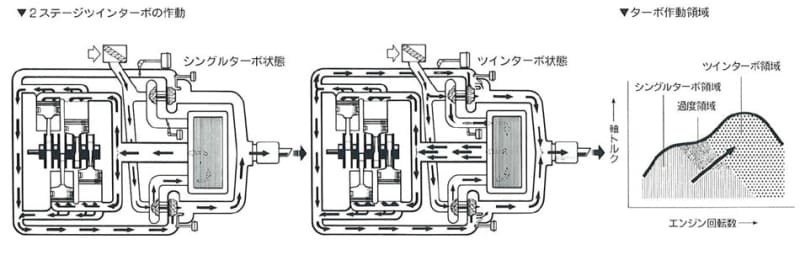

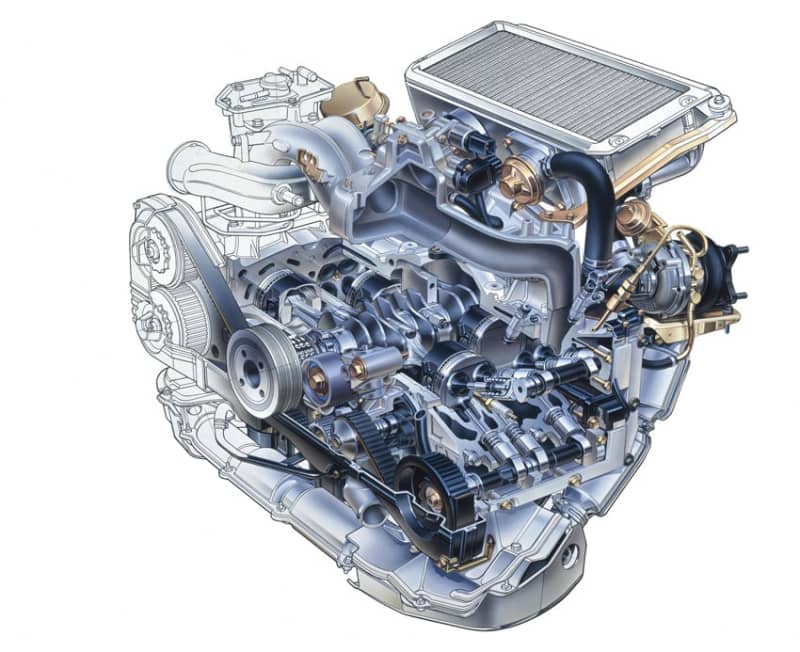

Mechanism of 2-stage twin turbo

In the high load and high speed range, the A/R ratio is a 12×2 twin turbo, producing high output and high torque. The exhaust manifolds with unequal intervals have left and right exhaust manifolds connected by balance tubes in order to suppress fluctuations in exhaust gas pressure due to fluctuations in the explosion interval.

During single turbo operation at low speed, the exhaust bypass valve of the primary turbo is fully closed and excess exhaust gas is made to flow to the secondary turbo side, pre-rotating the secondary turbo. On the other hand, when the engine load increases, the exhaust switching valve opens and sufficient exhaust gas flows to the secondary turbo side.

This two-stage twin turbo had an unusually high cost engine system, such as the use of ball bearing type bearings.

The supercharging pressure control of this two-stage twin turbo is electronically controlled, and the exhaust switching valve and waste gate are controlled by parameters such as intake manifold intake pressure, intake air amount, engine speed, water temperature, throttle opening, knock sensor, etc. It was a system to control valves.

Like the WRX, the intercooler is air-cooled and laid out on top of the engine. It was cooled by the air flowing in from the air scoop on the bonnet, and the hot air was flowing out to the transmission side behind the engine.

In this way, the example of adopting a variable system called a twin turbo and two-stage control for a 2.0L 4-cylinder engine was unprecedented at that time, including overseas, and was a particularly costly and complicated system.

However, in some urban and suburban roads, if the turbo switching timing coincides with a sudden acceleration from a light accelerator depression, the acceleration may be interrupted for a moment.

WRX STI

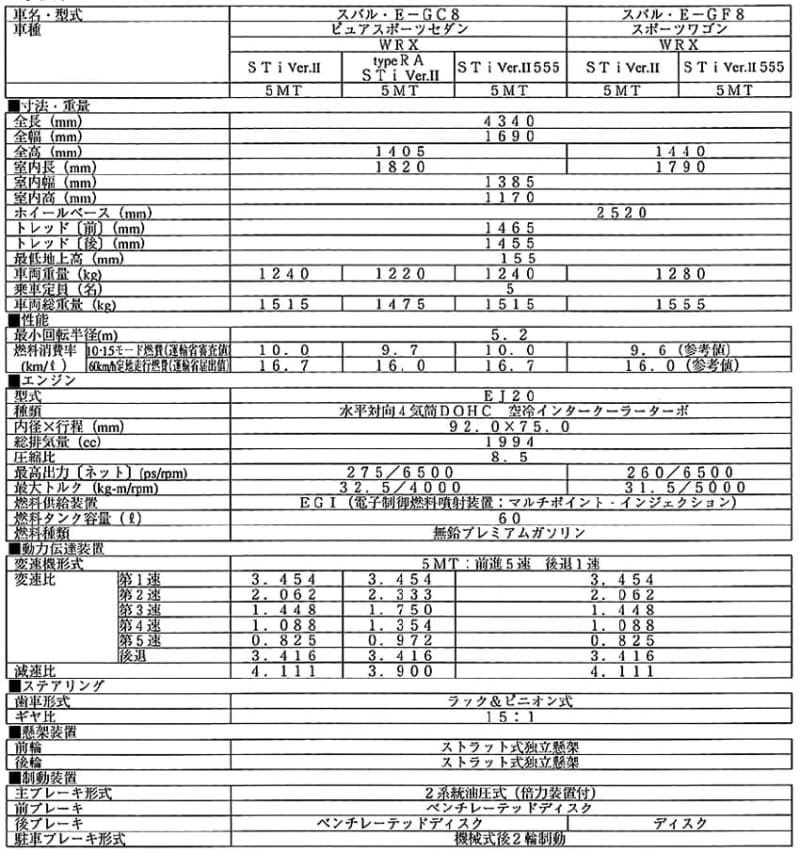

The model with the highest output in the WRX series is the WRX STI, and in 1996, “WRX TypeRA STi version II” was released with a limited number of 555 units. This STI tune EJ20 turbo engine generated 275ps/6500rpm.

However, in 1996, the Impreza series was minorly changed, and the WRX engine was further increased in rotation speed and output, reaching the domestic voluntary regulation value of 280ps at that time.

EJ20 type turbo with the name of Master 4 series

This engine is named Master 4 Series. The cylinder block has been changed to an open deck. The ignition system has been changed from direct ignition to simultaneous ignition of two coils. Improvements in the cooling performance of the cylinder head, metal cinder head gasket, low friction piston, intercooler size increase, etc.

Forged piston for WRX STI verⅢ

Also from this stage, the EJ20 turbo is divided into WRX 240ps specification, 280ps specification and WRX STI ver III 280ps specification.In addition to boosting boost pressure, the STI specification is equipped with a forged piston, inner shim type valve lifter, intake duct reinforcement, radiator cooling performance improvement, and auto mode intercooler water spray.

EJ20 turbo lineup as of 1995

In the inner shim type valve lifter, the shim for adjusting the valve clearance is the outer shim type which is usually placed on the lifter, but the inner shim type has a small diameter shim inside the lifter, so the weight is light. It is characterized by high rotation speed.

1998 specification WRX STI ver V

As a result, the maximum allowable engine speed of the STI specification has increased to 7900rpm, and the maximum torque was 329 Nm/4000rpm in the standard 280ps specification, while the STI specification has been increased to 343 Nm/4000 rpm.

From the F type, the EJ20 turbo engine was further improved and evolved into the EJ207 (PHASE-II series), adopting a newly designed cylinder block and cylinder head. Auxiliary equipment such as the Airflow sensor has also been greatly improved.

Complete car 22B STI

In 1998, the wide-body complete car “22B STi”, which was modeled after a WRC car, was released in a limited number of 400 units.The 22B is a full-fledged complete car equipped with wide fenders. The EJ engine has a larger bore diameter with a 96.9mm x 75.0mm bore stroke, and has a displacement of 2212cc called the “EJ22 revision”.

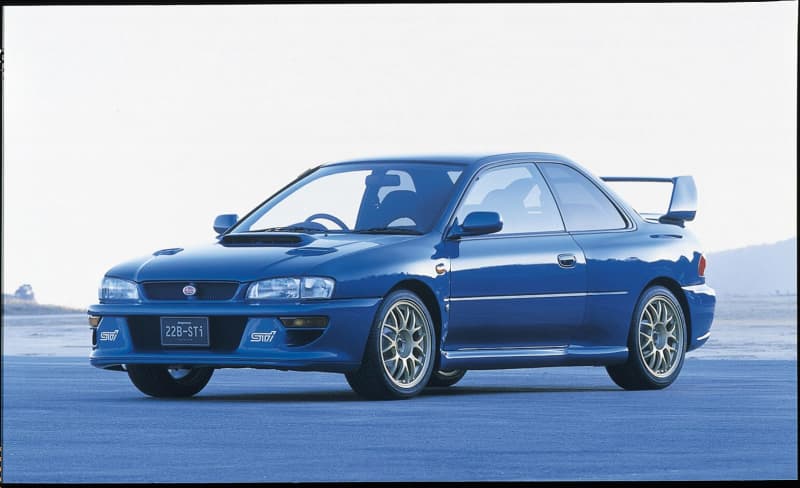

Wide body WRX 22B STi equipped with the EJ22revision, which was released in a limited number of 400 units.

The cylinder block used has the same closed deck structure as for WRC cars, and the piston is made of aluminum forging, a hollow valve, an inner shim structure is adopted, and it is a full-scale STI handmade engine that is also balanced. there were.

The special engine generated 363Nm/3200rpm with a maximum torque of 280ps/6000rpm due to self-regulation.

Third generation Legacy

In 1998, the third generation Legacy (BE/BH type) appeared. The 3rd-generation Legacy, which has the catchphrase “Be the best of the Legacy”, is equipped with an improved EJ20 PHASE II engine in the GT grade.

EJ20 PHASEⅡ 2-stage twin turbo engine adopted in the 3rd generation Legacy

This engine has been improved with the aim of improving low and medium speed torque, improving fuel efficiency, and reducing vibration. First, in the skeleton of the engine, the thrust bearing position of the crankshaft was changed from the 3rd journal to the 5th journal to reduce vibration.

In addition, the fastening bolts between the engine and transmission have been tightened from the conventional four to eight to increase the fastening rigidity of the power train, greatly reducing overall vibration.

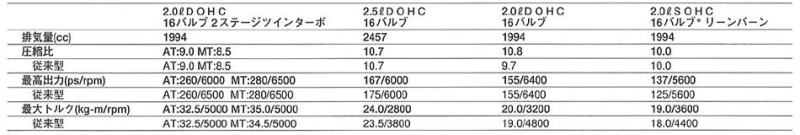

EJ20 PHASEⅡ series lineup

The intake port adopts a straight tumble port shape to improve the combustion speed in the low load range and increase the torque. In addition, it is the first Subaru system to take in air from outside the engine room, that is, from the outside of the vehicle.

Conventionally, a water moat is assumed, and intake air in the engine room is used so that water does not enter the intake air. However, it goes without saying that external intake air that can take in cool air is more advantageous for improving torque.

Legacy complete car S401 STi

The EJ20 turbo for GT follows the 2-stage twin turbo. The turbine blade size has been reduced to improve engine response, and mixed-flow turbine blades have also been adopted. As for the output, 260 ps for AT and 280 ps for MT were generated, boasting outstanding output in this class.

Legacy complete car S401 STi

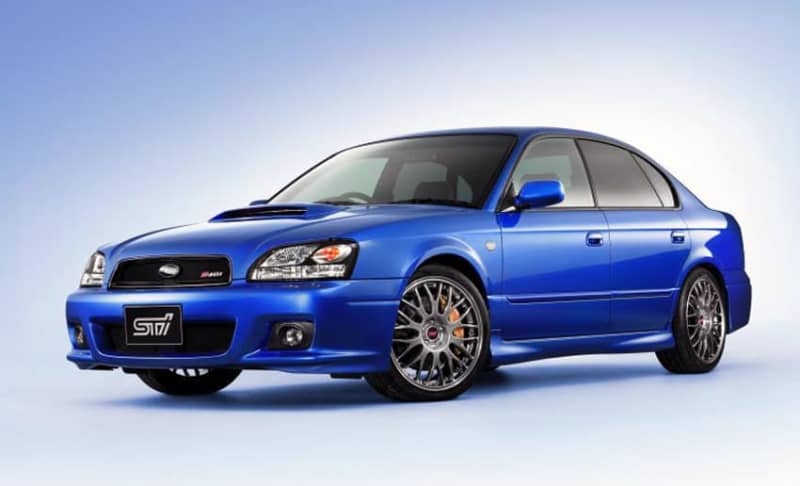

In 2002, based on this legacy sedan, the STI complete car “S401 STi version” was released for limited sale.

This engine has been hand-assembled and balanced by STI’s skilled workers, and the engine cover has been changed from standard black to silver, making it a special engine with a serial number.The power is 293ps/6400rpm and the torque is 343Nm/4400-5600rpm. It was also equipped with a 6-speed MT used in the GD Impreza WRX-STI, equipped with Brembo brakes and S401-specific parts.

Introduction of the second generation Impreza

The second-generation Impreza (GD/GG type) debuted in August 2000, and the WRX STI model was added in October, two months behind.

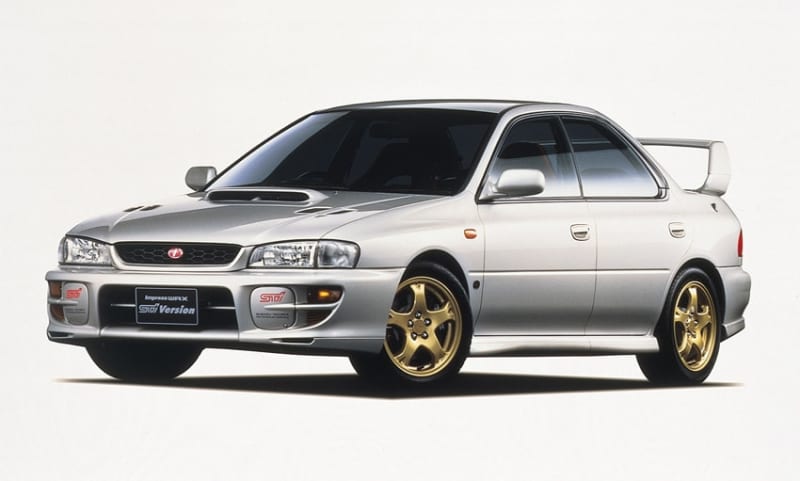

2nd generation Impreza WRX

From this second-generation Impreza, the EJ20 engine has evolved further by adopting variable control technology. The base EJ20 turbo for WRX has been newly developed with the theme of achieving both high output performance and environmental performance.

While pursuing improved fuel efficiency and cleaner exhaust gas, we are pursuing high torque characteristics over the entire area that exerts more than 80% of the maximum torque at 2200 rpm, and has evolved from a high speed rotation/high output type to a torque pursuit type. It is.

Engine for 2nd generation Impreza WRX

The intake system has been redesigned by increasing the intake efficiency from this engine to the outside of the vehicle and further increasing the size of the air intake duct, resonator, and air cleaner case. In addition, the size of the air-cooled intercooler has been expanded by about 10% to improve cooling performance.

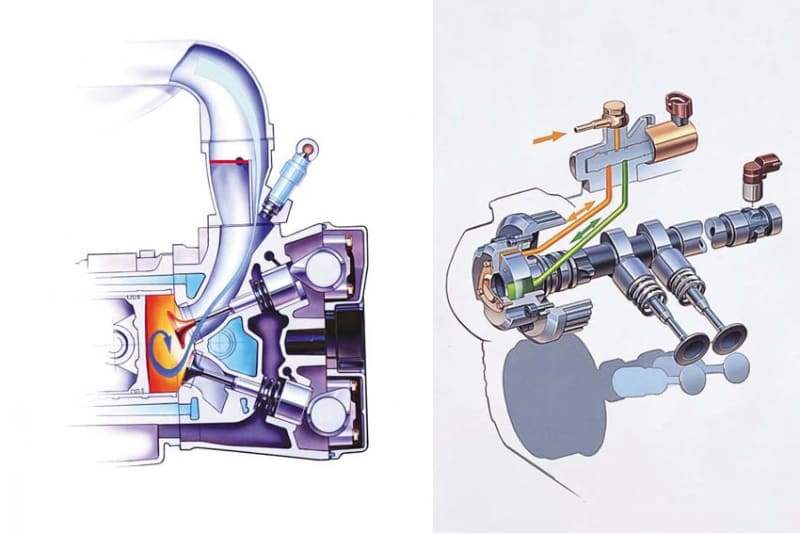

Tumble generation valve (left), hydraulic variable valve timing

In the engine itself, the intake cam is equipped with an active valve control system (AVCS) to realize continuously variable valve timing.

In addition, a tumble generation valve (TGV) is newly installed in the intake manifold, and the intake flow flows through a narrow manifold section at low rotation speed and low load, increasing the air flow velocity to generate a tumble flow, stirring the air-fuel mixture and increasing the combustion speed. It is.

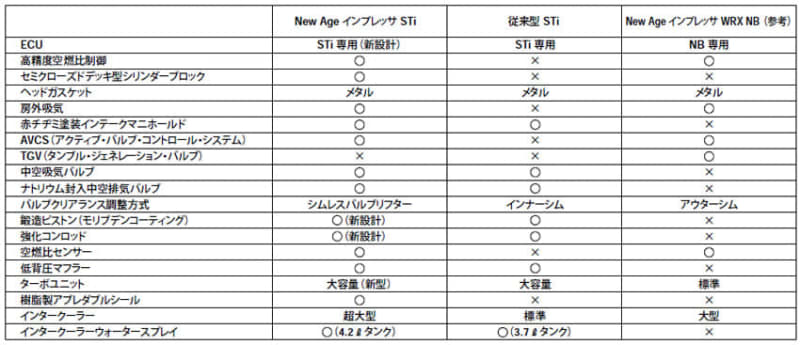

Comparison of old and new WRX STi engine specifications

In addition to this, a multi-hole injector, large-diameter turbo, etc. are also adopted, and EJ20 turbo standard specifications have achieved output of 250 ps / 6000 rpm, 333 Nm / 3600 rpm, focusing on low and medium speed torque. On the other hand, the WRX STI specification engine has been further matured as a sports engine.

280ps/373Nm achieved

The cylinder block has a new semi-closed deck type exclusively for STI specifications. The joints (reinforcement bridges) are made in the upper, lower, left and right sides of the water channel above the cylinder, achieving cylinder rigidity comparable to that of the former fully glazed deck structure. Moreover, it is more mass-producible than the previous closed deck structure.

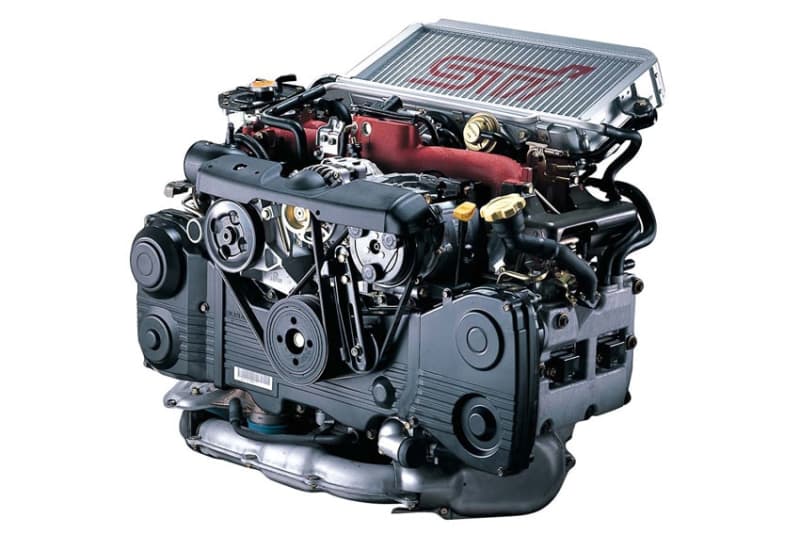

EJ20 Turbo for WRX STi

The intake side valve is a hollow valve and the exhaust side is a sodium filled type. A new shimless lifter is used to adjust the valve clearance. Previously, the inner shim type was used to set the gap adjusting shim inside the valve lifter, but in the case of a shimless type, the gap can be adjusted by selecting the lifter thickness setting. As a result, the valve train has been made even lighter, and improved blow-up and maximum allowable engine speed have been realized.

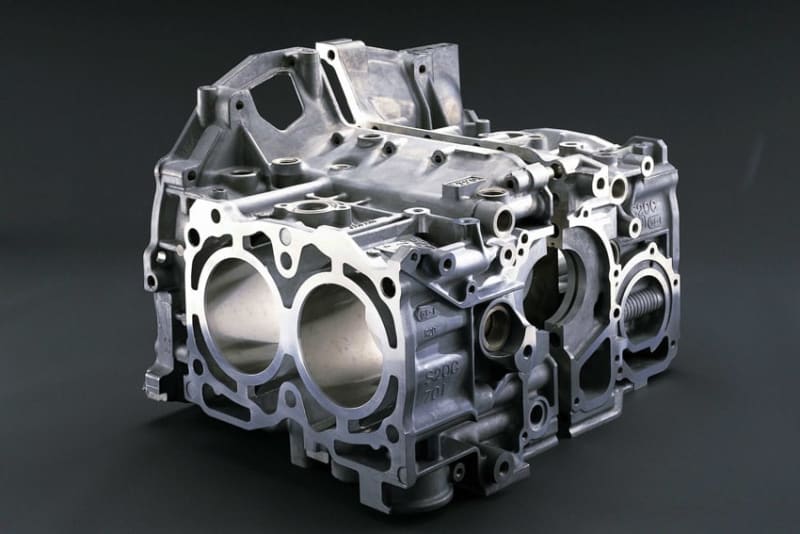

Newly adopted semi-closed deck type cylinder block

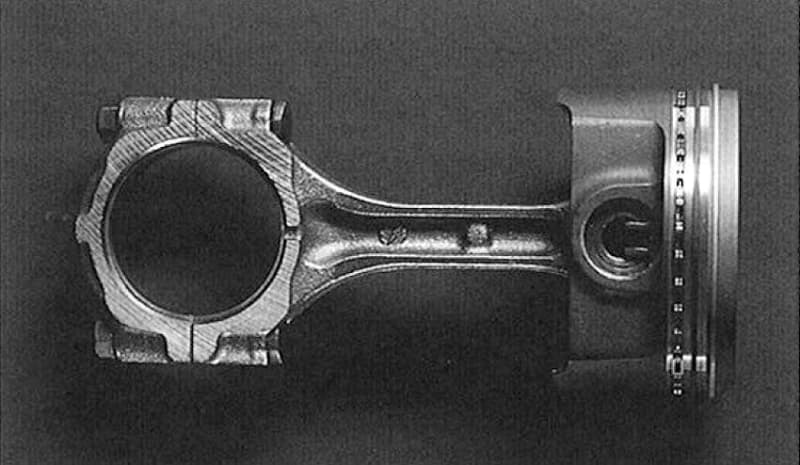

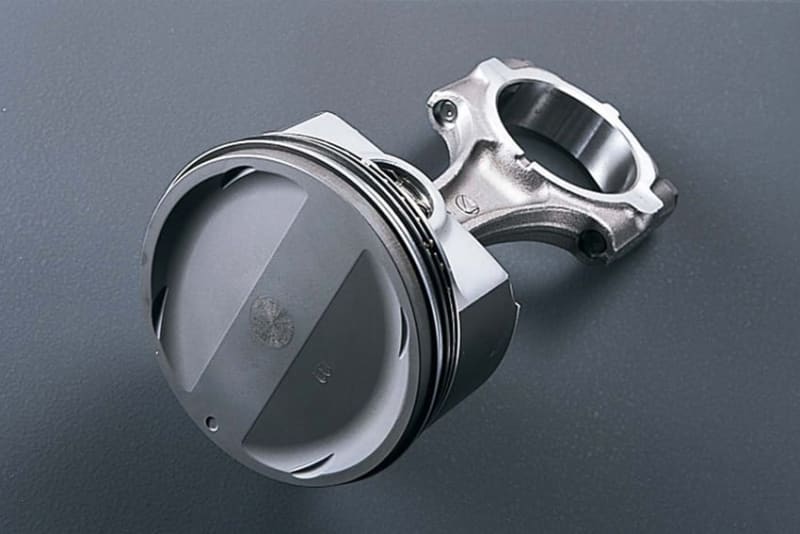

Nutless connecting rod and forged piston

The piston and connecting rod have also been newly designed, and a low friction forged piston has a nutless structure at the large end of the connecting rod.

This STI engine has also adopted AVCS, and the turbo has a larger diameter abradable seal structure. In addition, a large intercooler with a capacity increased by 50% compared to the conventional STI model and a low back pressure muffler are combined to achieve higher output.

By introducing these new technologies, we were able to generate 280ps/6400rpm and 373Nm/4000rpm.
